Auto doffer winding machine
An auto doffer winding machine is a specialized piece of equipment used in the textile industry for the winding process. Winding machines are critical in the production of yarn and textiles, as they prepare the yarn for subsequent processes by winding it onto spools or cones.
The term auto doffer refers to the machine’s ability to automatically remove and replace full packages of yarn, thereby improving efficiency and reducing the need for manual labor.
Key Components and Functions of an Auto Doffer Winding Machine
- Automatic Doffing System:
- Doffing Mechanism: The primary feature of an auto doffer winding machine is its automatic doffing mechanism. This system detects when a spool or cone is full and automatically removes it, replacing it with an empty one. This process reduces downtime and increases productivity.
- Package Transfer System: This component ensures the smooth transfer of full packages to storage and the replacement with empty packages without manual intervention.
- Yarn Tension Control:
- Tension Devices: These are crucial for maintaining consistent tension during the winding process, which ensures uniformity in the wound yarn. Proper tension control prevents yarn breakage and ensures high-quality output.
- Sensor Systems: Sensors monitor the tension and make real-time adjustments to maintain optimal conditions.
- Traverse Mechanism:
- Guide System: This ensures the yarn is evenly distributed across the spool or cone. A precisely controlled traverse mechanism prevents overlapping and ensures a neatly wound package.
- Pattern Control: Modern winding machines often include software to control the winding pattern, optimizing for different types of yarn and intended uses.
- Yarn Clearing and Splicing:
- Yarn Clearer: This device detects and removes defects in the yarn, such as thick or thin places, slubs, or foreign matter.
- Splicing Device: In the event of a yarn break, the splicing device automatically joins the ends of the yarn, minimizing wastage and downtime.
- Control System:
- Programmable Logic Controller (PLC): The PLC controls the various functions of the machine, including doffing, tension control, and traverse. It allows for customizable settings for different yarn types and production requirements.
- Human-Machine Interface (HMI): The HMI provides an interface for operators to monitor and adjust machine settings easily. Advanced systems may offer touchscreen interfaces and remote monitoring capabilities.
Benefits of Using an Auto Doffer Winding Machine
- Increased Efficiency:
- Automatic doffing significantly reduces downtime compared to manual doffing, leading to higher productivity.
- Continuous operation without frequent manual interventions allows for higher throughput.
- Consistent Quality:
- Automated tension control and yarn clearing ensure that the yarn wound onto the spools or cones is of consistent quality.
- Uniform winding patterns reduce defects and improve the quality of the final product.
- Reduced Labor Costs:
- The automation of doffing and other processes reduces the need for manual labor, leading to cost savings.
- Skilled operators can focus on monitoring and managing multiple machines rather than performing repetitive tasks.
- Enhanced Safety:
- Automation reduces the need for manual handling of machinery, thereby decreasing the risk of accidents and injuries.
Applications in the Textile Industry
Auto doffer winding machines are used extensively in various stages of textile production, including:
- Spinning Mills: For winding yarn onto cones or bobbins after spinning.
- Textile Weaving and Knitting Units: Preparing yarn packages suitable for weaving or knitting processes.
- Dyeing and Finishing Units: Ensuring uniform packages for even dyeing and finishing.

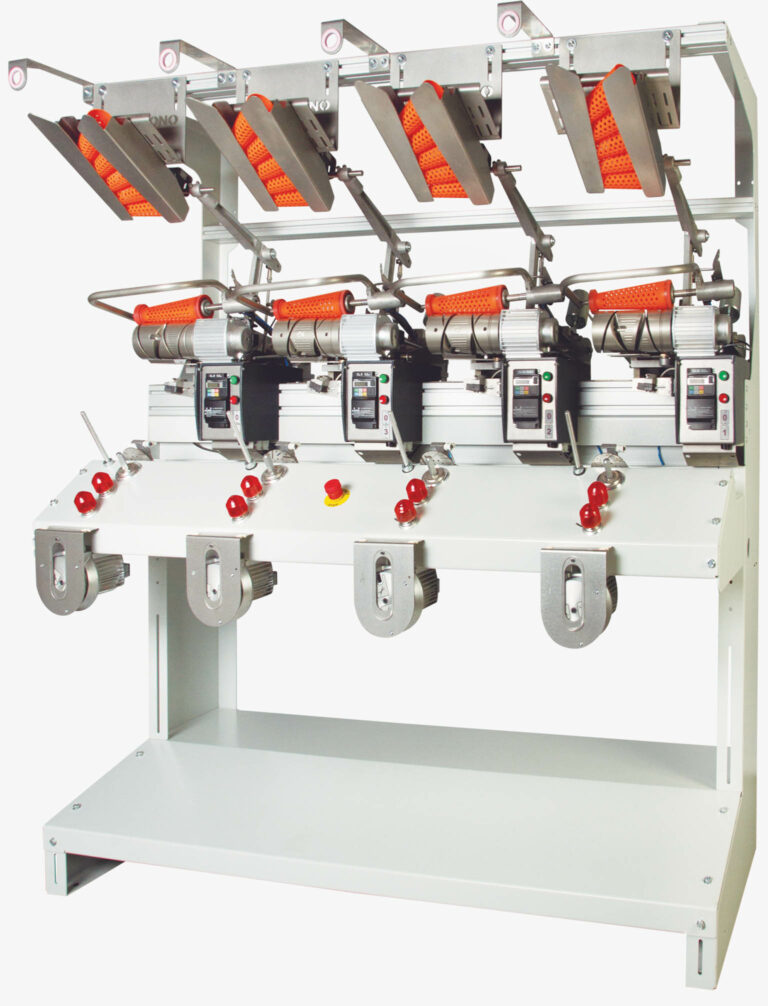

Introducing auto doffer winding machine Model SDA
As a tangible auto doffer engineering example, let us introduce our state of the art yarn winder.
This textile equipment allows manufacturers to grow their production in terms of quality and quantity.
Motocono knows about winding machines
Auto doffer winding machines represent a significant advancement in textile machinery, integrating automation to enhance productivity, consistency, and safety.
By automatically handling tasks that were traditionally labor-intensive, these machines enable textile manufacturers to meet high production demands while maintaining superior quality standards.
Their ability to seamlessly integrate with modern textile production lines makes winders indispensable in contemporary textile manufacturing.
