What is HVAC?
The term HVAC(Heating, Ventilation, and Air Conditioning) refers to the air conditioning and temperature control system in buildings and facilities.
HVAC is fundamental in the ductwork domain, as it ensures thermal comfort and air quality in enclosed spaces such as offices, homes, hospitals and shopping centers.
Some areas related to HVAC are:
Applications where energy efficiency and humidity control prevail:
- Air-conditioning
- Heating
- Ventilation
Some essential elements of HVAC systems are:
- Ducts
- Filters
- Thermostats
- Coolant
The adequacy of HVAC systems contributes to optimal performance and comfort in indoor environments. Let us now look at the specific importance of HVAC ductwork.
HVAC sheet metal ducts
HVAC is vital to maintaining comfort and air quality in buildings and enclosed spaces.
This technology is used in heating, cooling and ventilation systems to regulate temperature and humidity, as well as air quality.
Thermostats control the thermodynamic operation of the HVAC, while ducts enable air distribution.
Filters are important to keep the air clean and healthy, and the refrigerant is key to the cooling process.
At the same time, and especially in view of the “new climate and energy context” (which is objectively not “new” at all), efficiency is being sought.
Energy efficiency is essential for good HVAC system performance, not only in terms of temperature or electricity bill. At Motocono we talk about Sustainability.
HVAC ducts are classified into several types, each with specific technical characteristics:
- Sheet metal ducts: durable and fire resistant.
- Flexible ducts: offer a more feasible installation in confined spaces.
- Fiberglass ducts: lightweight and have thermal insulation properties.
- Plastic conduits: used in applications requiring corrosion resistance.
In terms of the type of fluid or material to be conveyed, HVAC ducts can be used to transport air, hot water, steam or refrigerant.
Each type of conduit has its own specifications and requirements depending on the fluid to be conveyed.
HVAC Ducts: Specifications and Requirements
In HVAC duct installations, ducts play a crucial role in transporting different fluids to maintain controlled and comfortable environments. The following are the specifications and requirements of the ducts, with special attention to the metallic ones and highlighting the particularities according to the fluid they carry.
1. Metal Ducts: Versatility and Durability
1.1 Air Ducts: Metal ducts for air transport must comply with rigorous standards to guarantee the quality of the flow. It is recommended to follow standards such as ASHRAE 189.1 for sustainable buildings.
1.2 Steam Ducts: In the case of steam transport, resistance to high temperatures is essential. Conformance to standards such as ASTM E1137 ensures structural integrity under extreme thermal conditions.
1.3 Refrigerant Ducts: The conduction of refrigerants demands ducts that avoid energy loss. Here, standards such as EN 378 establish specific requirements to ensure energy efficiency.
2. Ducts for Specific Fluids: Precise Adaptability
2.1 Water Pipelines: In installations requiring water conveyance, corrosion resistance is critical. Standards such as ISO 2037 provide guidelines to ensure the quality of transported water.
2.2 Gas Pipelines: For safe gas pipelines, it is crucial to follow regulations such as ISO 14224, which establishes guidelines for asset management in the gas industry.
3. Regulations and Standards: Quality Pillars
3.1 International Standards: Ducts must comply with international standards, such as ISO 16890 for air filters, to ensure indoor air quality.
3.2 Safety Standards: In environments where safety is a priority, such as industrial facilities, ducts should follow standards such as NFPA 90A for air conditioning and ventilation systems.
Efficiency and Compliance in HVAC installations
The selection and proper design of sheet metal ducts in the HVAC field are crucial elements to ensure the efficient performance of air conditioning systems. By complying with specific regulations and standards, metal ducts demonstrate their versatility and adaptability, thus contributing to safe and comfortable environments.
Motocono machinery is an excellent choice for manufacturing high quality and efficient sheet metal ductwork for HVAC installations.
We produce HVAC duct machinery specifically designed for metal duct fabrication, mainly oriented to all areas of HVAC ducting and fume extraction ducting.
Motocono ‘s technology allows the production of high quality smooth ducts, with maximum watertightness and corrosion resistance, ensuring efficiency and compliance of HVAC installations. The resulting ducts are prepared to pass industry-specific certifications.
Remember, excellence in HVAC ductwork begins with the right choice of ductwork, meeting the highest industry standards. Motocono HVAC duct machinery is the best foundation for high quality, durable HVAC ductwork.
The Importance of Quality Fabrication and Accurate Insulation in HVAC Sheet Metal Ductwork
In thermodynamic environments, the manufacturing quality of the sheet metal ducts and their adequate insulation stand as fundamental pillars to guarantee optimal performance of HVAC systems, both in heating and cooling (air conditioning). Let’s explore these two facets:
1. Quality Manufacturing: The Basis of Efficiency
Quality manufacturing of sheet metal ducts in HVAC systems is not simply an aesthetic issue, but an essential factor that directly impacts the overall performance of the system. Some crucial considerations include:
1.1 Structural Integrity: Precision fabricated ductwork utilizing durable materials ensures a robust structure that withstands operating conditions without compromising efficiency.
1.2 Airtightness: The quality of the manufacturing process guarantees airtight joints, preventing air leaks that could reduce energy efficiency and compromise indoor air quality.
1.3 Regulatory Compliance: Manufacturing must comply with specific industry standards and regulations, such as those established by ASHRAE, to ensure the safety and efficiency of the system.

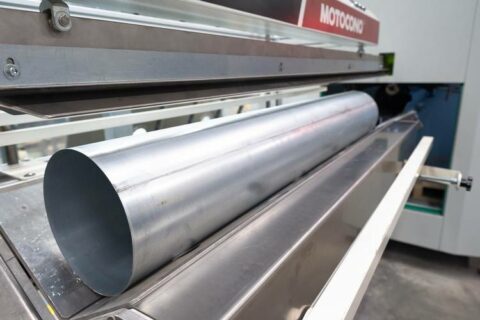

2. Importance of Duct Welding
The importance of a quality weld in HVAC sheet metal ductwork cannot be underestimated, as it is a determining factor in the integrity and efficiency of the HVAC system.
Precise welding ensures not only the tightness of the ducts, preventing air leaks that can significantly reduce energy efficiency, but also strengthens the structure, allowing the ducts to better resist pressure variations and other stress factors inherent to their operation.
A welding process in accordance with the highest standards, such as those dictated by AWS (American Welding Society), guarantees the durability and reliability of the HVAC system, thus minimizing the risk of failures and the need for corrective maintenance.
This attention to detail in welding contributes directly to optimizing system performance, ensuring uniform air distribution and promoting a healthy and comfortable indoor environment.
3. Correct Insulation: Barrier against Energy Losses
Proper insulation of sheet metal ducts in HVAC systems plays a crucial role in optimizing performance and energy efficiency. Here, we highlight its importance:
3.1 Reduction of Thermal Losses: Efficient insulation prevents the loss of heat or cold along the ducts, ensuring that the temperature of the transported fluid remains constant.
3.2 Condensation Control: Insulation prevents condensation on the exterior surface of ducts, mitigating risks of corrosion and long-term structural damage.
3.3 Energy Efficiency: Proper insulation contributes directly to the energy efficiency of the system, reducing the workload of the air conditioning equipment.
Meeting High Standards: Quality Assurance
To ensure excellence in HVAC sheet metal duct manufacturing and insulation, it is essential to follow rigorous standards:
3.1 Insulation Standards: Specific standards, such as those established by ASTM C518, guide the selection and proper application of insulation materials.
3.2 Performance Tests: Tightness and efficiency tests are imperative to validate the quality of the ducts, ensuring that they meet standards and expectations.
In summary, quality manufacturing and precise insulation of HVAC sheet metal ducts are factors that not only ensure optimal system performance, but also contribute significantly to energy efficiency and long-term durability. By adhering to regulations and standards, you establish the foundation for comfortable indoor environments and reliable HVAC systems.

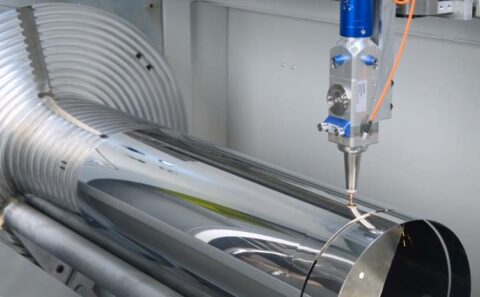

Thus, Motocono offers a way to participate in the circle of environmental sustainability by providing its cutting, welding, beading and tube forming machines. Whether with laser or plasma cutting machines, our machinery sets a high standard in cutting and producing sheet metal ducts that allows the installer to do impeccable work that results in greater energy efficiency and safety in use.
