T Shaping machine for metal ducts.

TUBTSHAPE H

T Shaping machine for metal ducts.

Download Product Guide

T Shaping machine for metal ducts.

TUBTSHAPE H
T Shaping machine for metal ducts.
Download Product Guide

T Shaping machine for metal ducts.

TUBTSHAPE H

Download Product Guide

T Shaping machine for metal ducts.
Ideal machine for "T" forming as it allows the client to certify that the tube does not have any leaks.

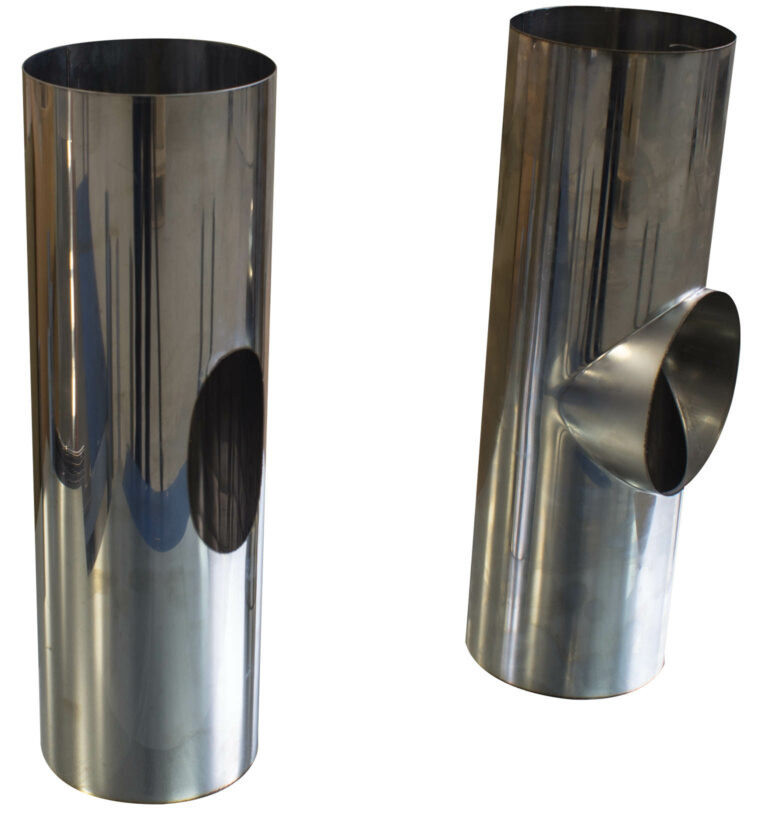

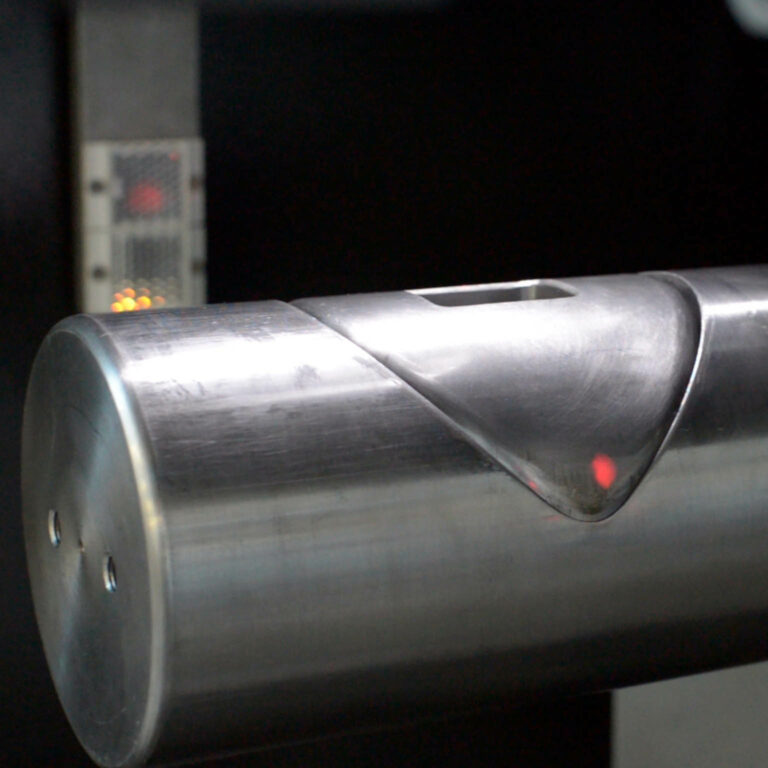

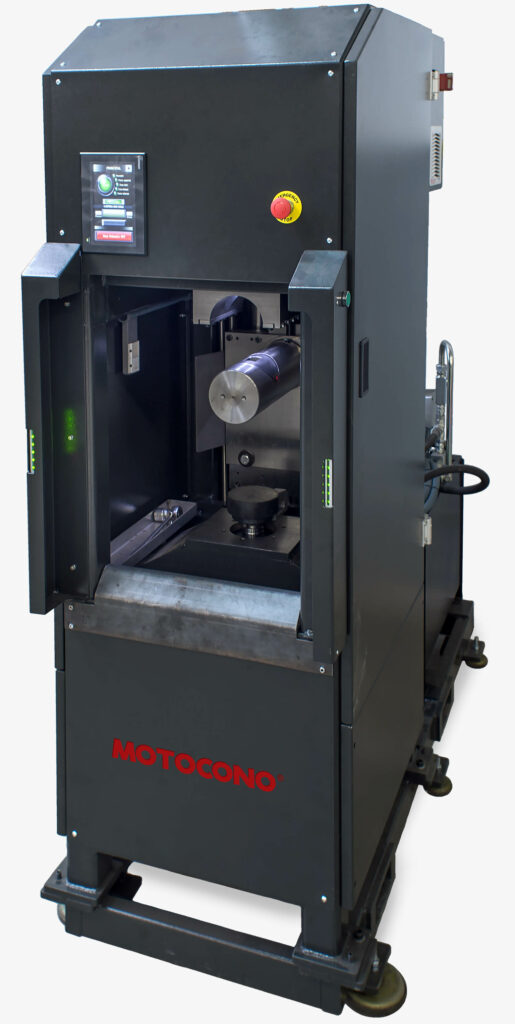

The TubTShape H is a machine for “T” forming metal tubes. It stretches the tube in cold work, resulting in an excellent finish and perfect tightness.
  • Touch screen
    It equips a 7” touch screen for sequence control with an intuitive interface and remote online assistance with the support of our Customer Support technicians.
  • Thickness
    It works with thicknesses from 0.4 mm to 1 mm in stainless and galvanized steel.
  • Diameters tools
    It requires specific tools for each diameter and thickness and they are quick and easy to change.
  • Safety
    It has a security control system using photoelectric barriers. The machine stops avoiding any possible intrusion.

SPECIFICATIONS

Operable length
400 mm
Operable diameters
Ø80 – Ø300 mm
Espesores operables
0.4 mm - 1 mm (according tool)
Power Supply
400V III 50/60 Hz
Dimensions
1830 x 710 x 2340 mm
Weight (approx.)
1500 Kg
Materials
Mild steel, galvanized, stainless steel
Control Panel
PLC with 7" touch screen
Download Product data sheet


SPECIFICATIONS

Operable length
400 mm
Operable diameters
Ø80 – Ø300 mm
Espesores operables
0.4 mm - 1 mm (according tool)
Power Supply
400V III 50/60 Hz
Dimensions
1830 x 710 x 2340 mm
Weight (approx.)
1500 Kg
Materials
Mild steel, galvanized, stainless steel
Control Panel
PLC with 7" touch screen
Download Product data sheet

T Shaping machine for metal ducts. - Motoconot shaping machine by Motocono - Ideal machine for "T" forming as it allows the client to certify that the tube does not have any leaks.
The TubTShape H is a machine for “T” forming metal tubes. It stretches the tube in cold work, resulting in an excellent finish and perfect tightness. - Maquinaria desarrollada por Motoconot shaping machine by Motocono - T Shaping machine for metal ducts.
Ideal machine for "T" forming as it allows the client to certify that the tube does not have any leaks.The TubTShape H is a machine for “T” forming metal tubes. It stretches the tube in cold work, resulting in an excellent finish and perfect tightness. - Maquinaria desarrollada por Motocono

T Shaping machine for metal ducts. - Motoconot shaping machine by Motocono - Ideal machine for "T" forming as it allows the client to certify that the tube does not have any leaks.
The TubTShape H is a machine for “T” forming metal tubes. It stretches the tube in cold work, resulting in an excellent finish and perfect tightness. - Maquinaria desarrollada por Motoconot shaping machine by Motocono - T Shaping machine for metal ducts.
Ideal machine for "T" forming as it allows the client to certify that the tube does not have any leaks.The TubTShape H is a machine for “T” forming metal tubes. It stretches the tube in cold work, resulting in an excellent finish and perfect tightness. - Maquinaria desarrollada por Motocono
