Laser or plasma cutting machine for carbon, galvanized and stainless steel ducts.

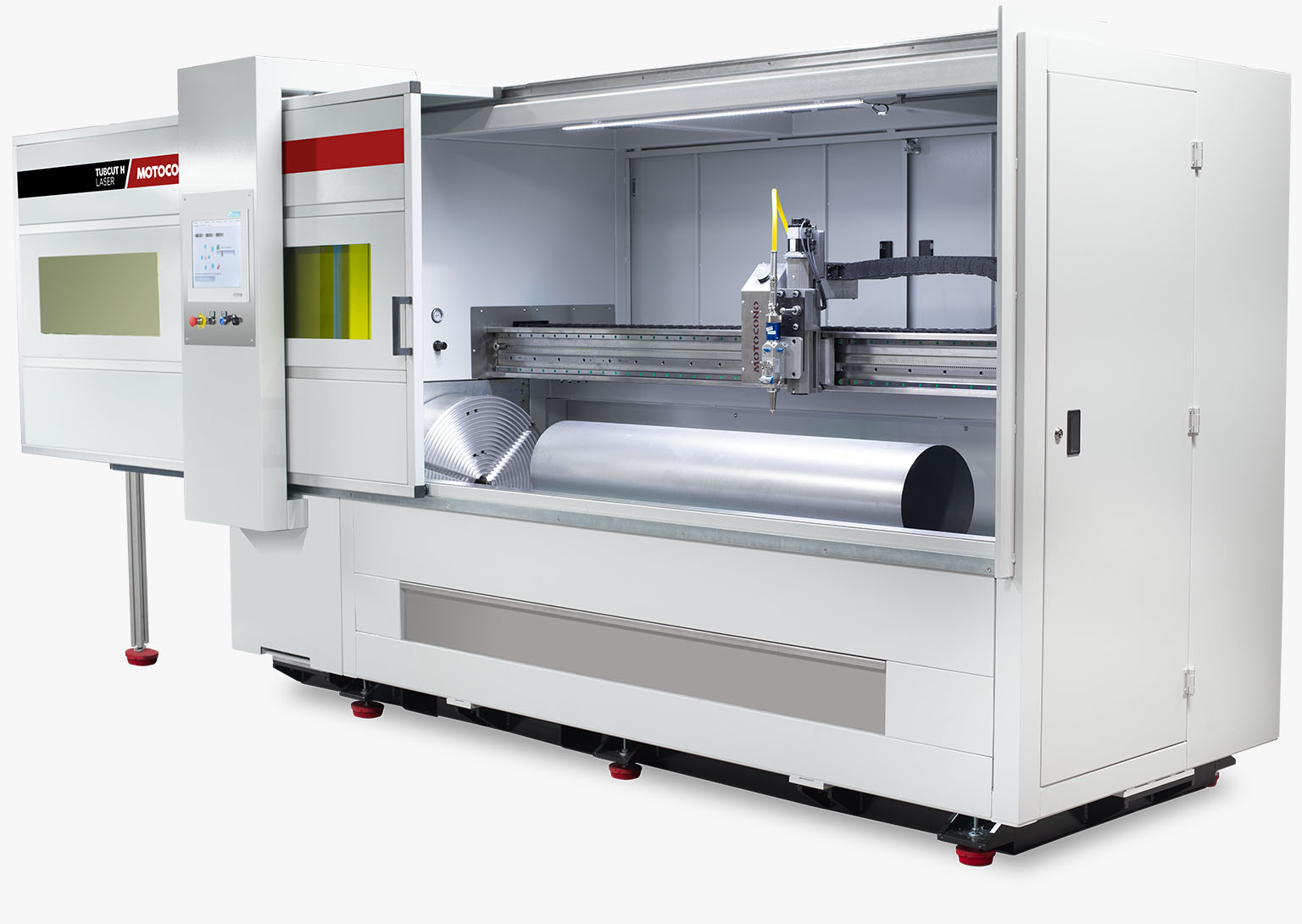

The TubCut H is a laser or plasma cutting machine for carbon, galvanized and stainless steel ducts and chimneys. You can cut all those figures that are needed to form elbows, Ts and Us, among others.
  • Thickness admitted
    In both laser and plasma technologies, it allows cutting thicknesses up to 3 mm.
  • Anti-projection aspiration

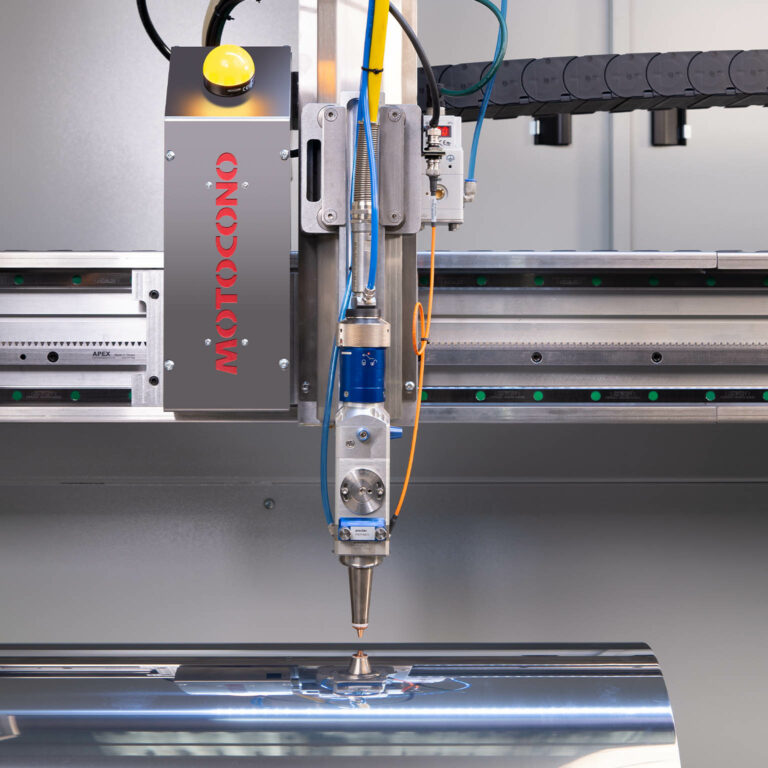

    Smoke extraction is made through a spoon inside the tube that travels down the cutting head, aspirating any smoke, fumes and projections under the laser beam.
  • Intuitive interface

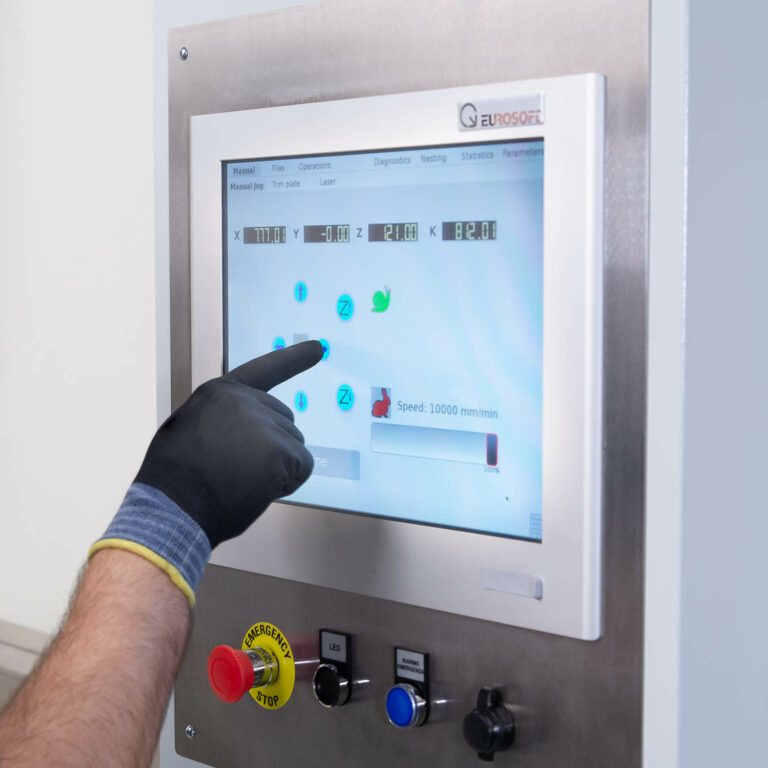

    It incorporates a 15” touch screen with an intuitive interface, a library of standard parts and online remote assistance with the support of our Customer Service technicians.
  • Flexibility and productivity
    The practical clamping plate allows different diameters to be worked without the need for adjustments, saving on setup times.
  • Quality components
    High precision servomotors, IPG laser, Precitec head, Kollmorgen drivers, are our allies to guarantee a first class and reliable product.
  • Height control and auto-greasing
    It has a height and anti-collision control and an automatic greasing system that lubricates the specific points of the mechanics.

SPECIFICATIONS

Operable diameters
Ø80 – Ø600 mm
Operable length
Up to 2000 mm
Cutting technology
IPG laser up to 1.5 kW / Plasma air-air or high definition
Power Supply
400V III 50/60 Hz
Cutting thickness
Up to 3 mm
Outer dimensions
5750 x 1500 x 2250 mm
Weight (approx.)
1800 Kg
Materials
Mild steel, galvanized, stainless steel
Precision movement
0,1 mm/m
Drive system
3 AC servomotors
Control Panel
CNC with 15" touch screen
Control Software
CutExpert by Eurosoft
Download Product data sheet
