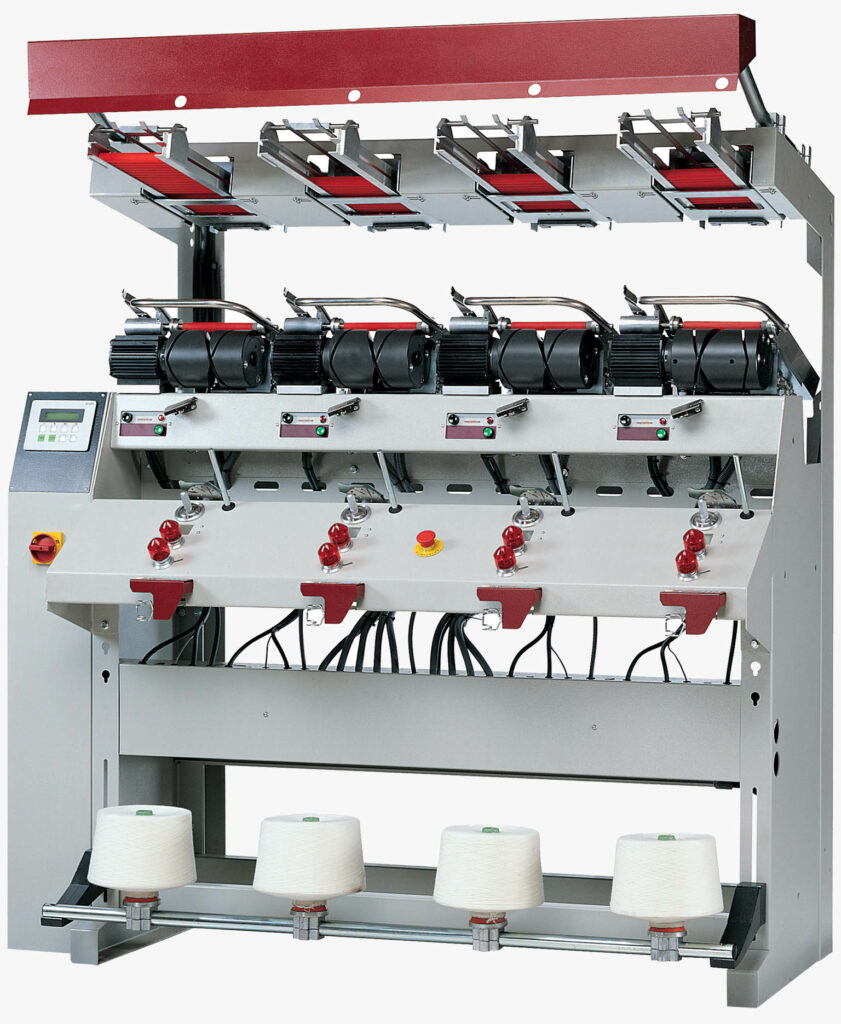

The LPDA is an automatic unloading winding machine for carpet yarns.

Specialized in making metered bobbins, without reserve on cylindrical tube for creels for direct feeding of looms.
  • Programmable counters
    It is recommended for the automatic production of a large number of bobbins with the same length of yarn.
  • Slotted cylinder
    It is a slotted cylinder winding machine without glue back-up.
  • Use with direct feed looms
    The LPDA automatic unloading winder has been specially designed to make metered cylindrical bobbins for the feeding creels of direct feed looms.
  • No reserve thread tail
    This machine model has the peculiarity of not leaving a reserve yarn tail, for this reason the machine hides it in the central inner part of the bobbin.
  • Photoelectric detector
    This machine is equipped with a programmable meter counter and photocell wire breakage detector.
  • Options
    Optionally, the machine can be supplied with a conveyor belt for the unloading of full coils.

SPECIFICATIONS

Most suitable yarn counts
100 – 1 Nm
Max. Supply bobbin dimensions
Ø 300 x 300 mm
Winding speed
0 – 1200 m/min
Doffing time
10 sec.
Yarn traverse (inches/mm)
5”/125, 6”/150
Take-up tube
Maximum diameter of take up bobbins
200 mm
Download Product data sheet


SPECIFICATIONS

Most suitable yarn counts
100 – 1 Nm
Max. Supply bobbin dimensions
Ø 300 x 300 mm
Winding speed
0 – 1200 m/min
Doffing time
10 sec.
Yarn traverse (inches/mm)
5”/125, 6”/150
Take-up tube
Maximum diameter of take up bobbins
200 mm
Download Product data sheet
