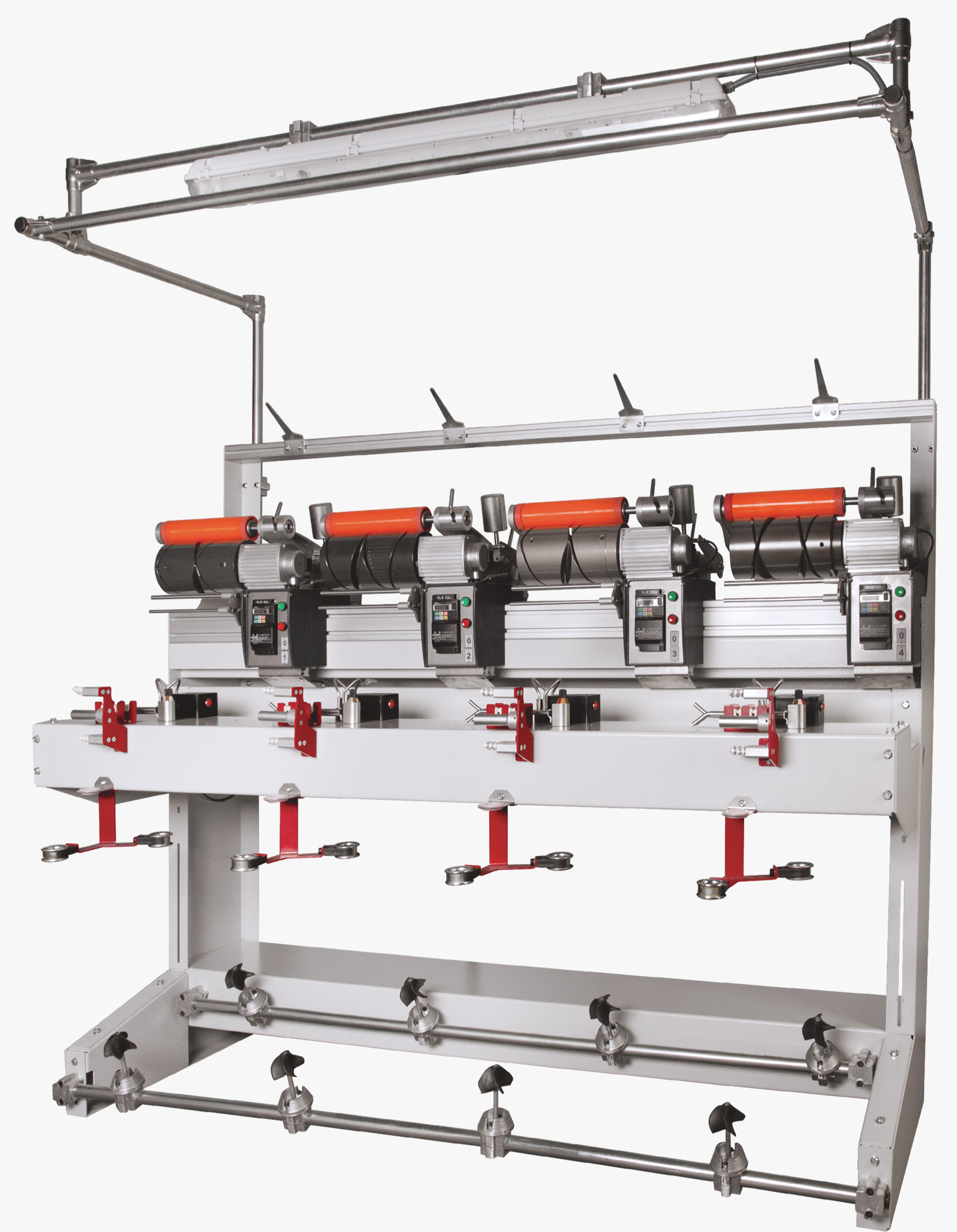

Yarn assembly winding machine
This model has been designed to assemble yarns on packages suitable for the twisting process. It can gather up to 4 yarns and is equipped with a yarn-guiding cylinder.

Modular assembly winding machine with 4 spindles, which can be extended up to a maximum of 40
  • What is it used for?
    Specially designed for spinning, yarn dyeing, flat and knitting mills, for winding, rewinding, reproofing, purging and waxing yarns.
  • Engines
    Each head is equipped with a motor and its own independent frequency inverter that incorporates a yarn meter that stops when the programmed yarn length is reached. They can be programmed individually or by groups of heads.
  • Headers
    Thanks to its special design and the large diameter of its yarn-guiding cylinder, it allows the formation of bobbins of gathered yarns at high speed.
  • Optional
    It has the option of being equipped with an external feeding creel, to gather up to 4 wires with reserve for continuous feeding.

SPECIFICATIONS

Most suitable yarn counts
100 – 1 Nm
Max. Supply bobbin dimensions
Up to Ø 300 x 200 mm
Winding speed
0 – 1200 m/min
Yarn traverse (inches/mm)
6”/152, 8”/200, 10”/250
Take-up cones
0º / 3º30’ / 4º20’
Max. diameter of take up bobbins
300 mm
Download Product data sheet


SPECIFICATIONS

Most suitable yarn counts
100 – 1 Nm
Max. Supply bobbin dimensions
Up to Ø 300 x 200 mm
Winding speed
0 – 1200 m/min
Yarn traverse (inches/mm)
6”/152, 8”/200, 10”/250
Take-up cones
0º / 3º30’ / 4º20’
Max. diameter of take up bobbins
300 mm
Download Product data sheet
