Automatic beading machine for HVAC ducts and chimneys.

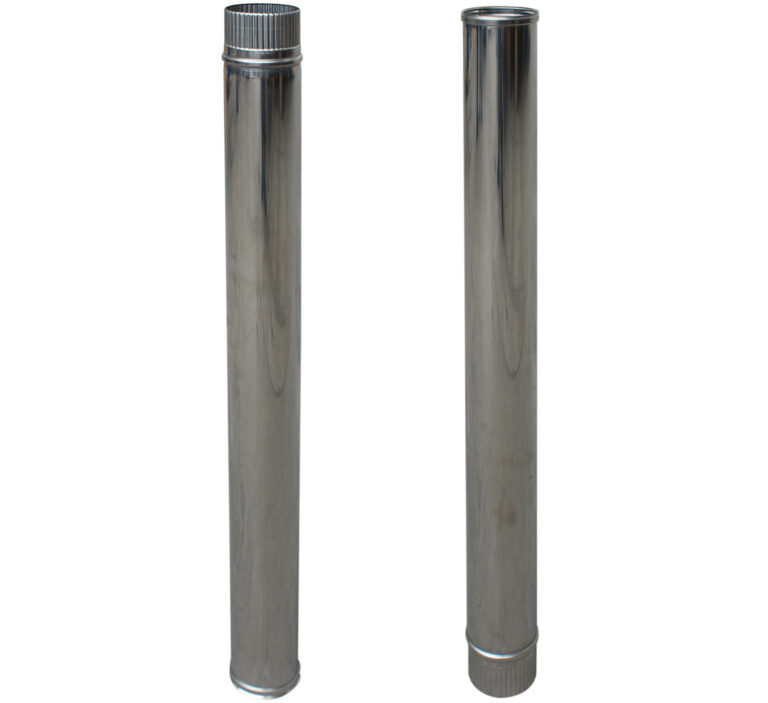

A good beading option for high and flexible productivity of pipes and chimneys.

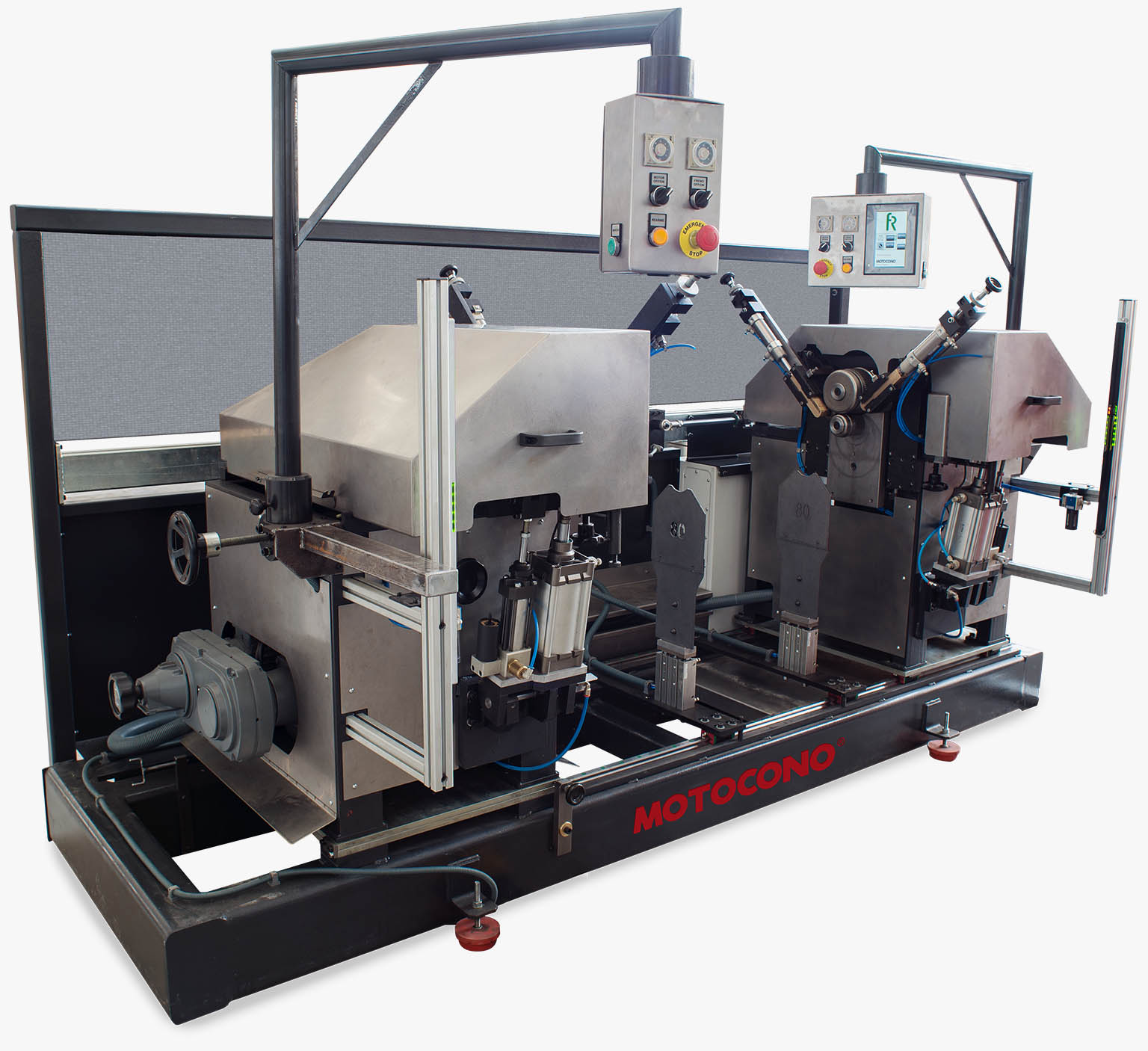

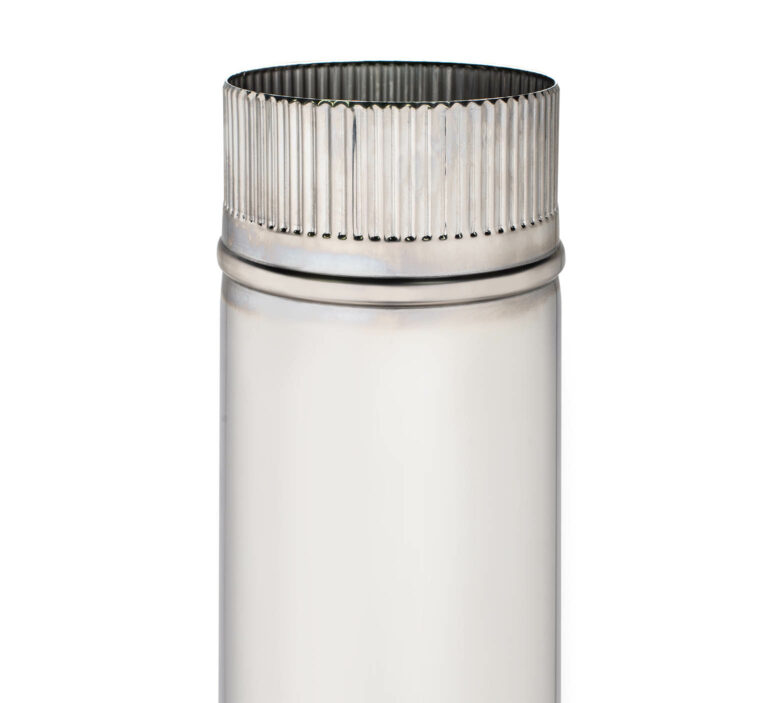

The TubBead H is an automatic beading machine for HVAC ducts and chimneys. Its fully automatic mechanism allows the simultaneously beading of both ends of the tubes, in 15 seconds with practically no men intervention.
  • Flexible solution
    The TubBead H is an automatic machine for the beading of ventilation pipes, with thicknesses from 0.4 mm to 1.5 mm in stainless and galvanized steel.
  • Support system
    The support system is quickly interchangeable. The supports adapt to the length of the tube and beads both ends without moving the tube, ensuring that it does not warp.

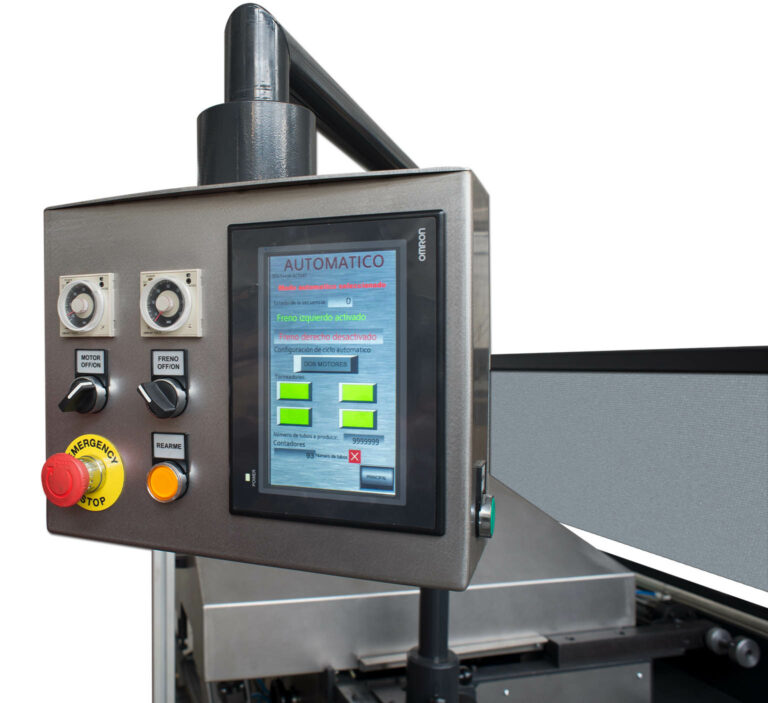

  • PLC settings
    The user can adjust rotation speed, pressures and almost any parameter involved in the process. Later they can be saved as presets for specific materials.
  • High productivity
    This machine is ideal for manufacturing a high number of pieces per hour, since it works with short cycles.
  • Head shafts
    The axes of the upper and lower heads are always parallel, regardless of whether they are open or closed. The heads rapidly approach the length of the tubes.
  • Manual mode
    One of the towers can rotate 90º in order to operate manually longer tubes or for example an elbow figure.

SPECIFICATIONS

Operable length (automatic)
250 – 1000 mm
Operable length (manual)
Unlimited
Operable diameters
Ø80 – Ø1000 mm
Operable thicknesses
0,4 mm – 1,5 mm
Power supply
400V III 50/60Hz
Dimensions
2300 x 1000 x 1800 mm
Weight (approx.)
1500 Kg
Swivel head
Allows elbows and large diameters
Cycle (tubes Ø80 - Ø150 mm)
15 sec, 240 units/hour
Materials
Mild steel, galvanized, stainless steel
Control panel
PLC with 7" touch screen
Download Product data sheet
