Plasma cutting machine for large dimension tubes.

TUBCUT MP

Plasma cutting machine for large dimension tubes.

Download Product Guide

Plasma cutting machine for large dimension tubes.

TUBCUT MP
Plasma cutting machine for large dimension tubes.
Download Product Guide

Plasma cutting machine for large dimension tubes.

TUBCUT MP

Download Product Guide

Plasma cutting machine for large dimension tubes.
Ideal machine for heavy boilermaking works, pipe joints, water conduction, manufacture of filter housings, among others.

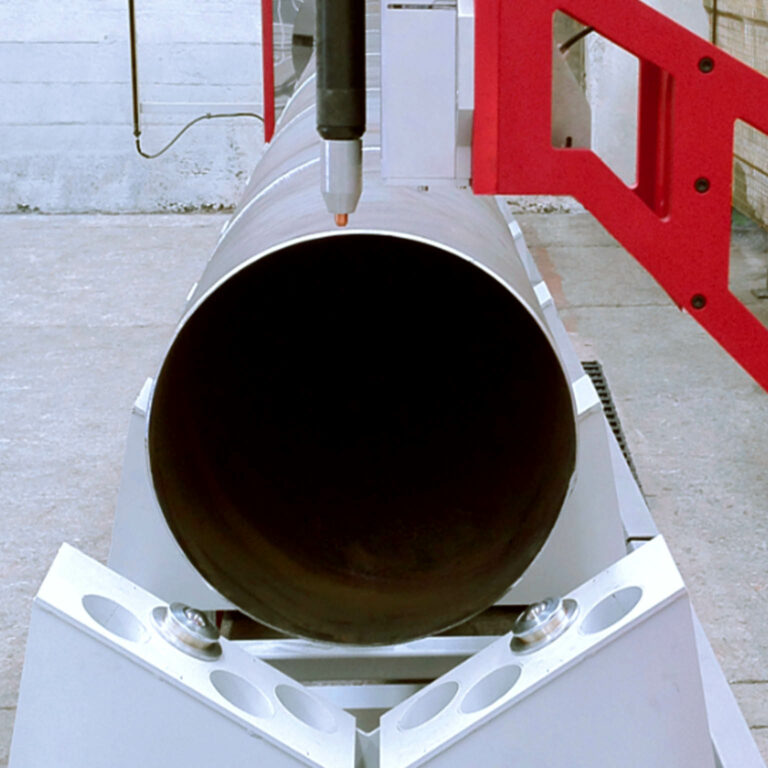

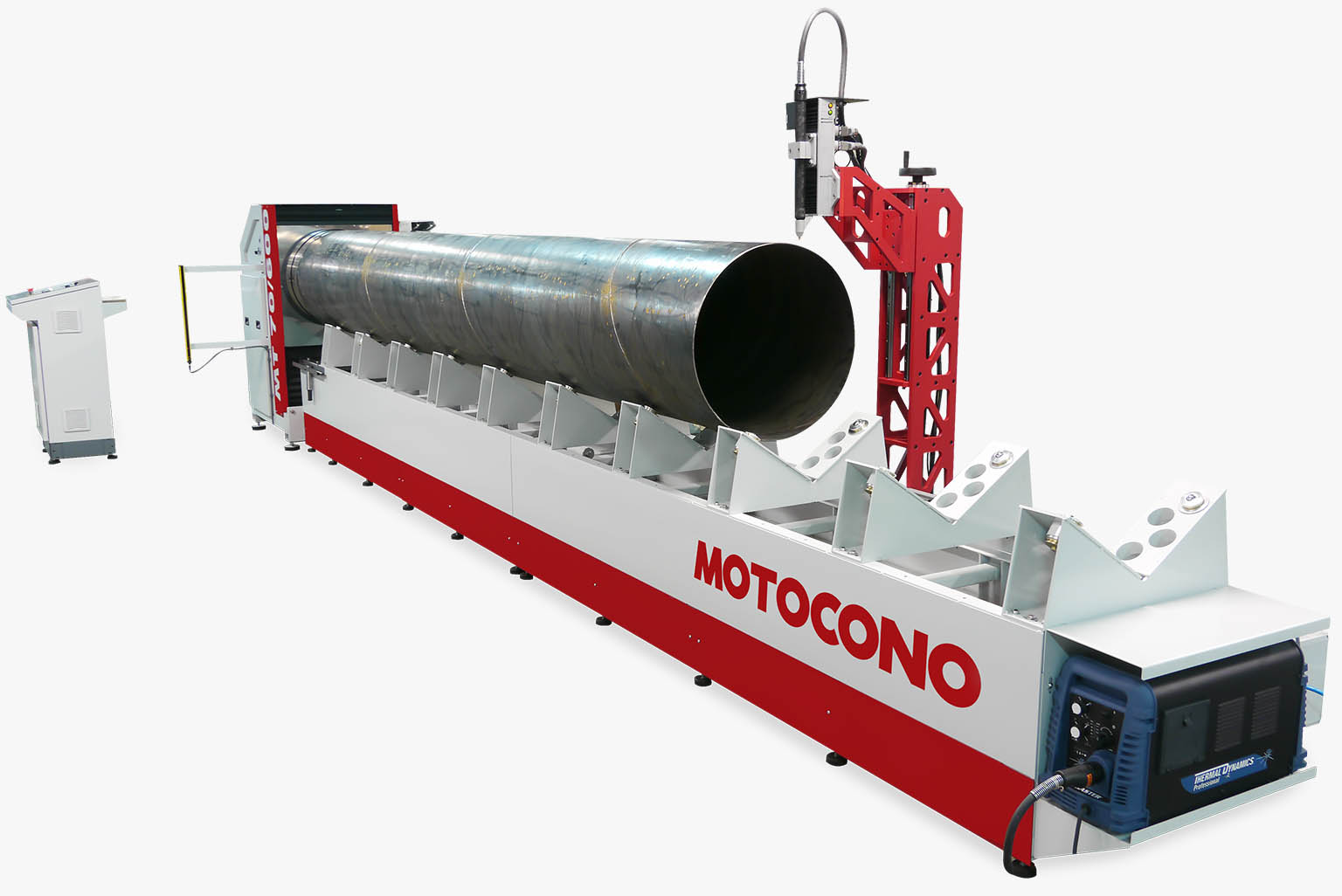

The TubCut MP is a plasma cutting machine for large tubes.
  • Thickness

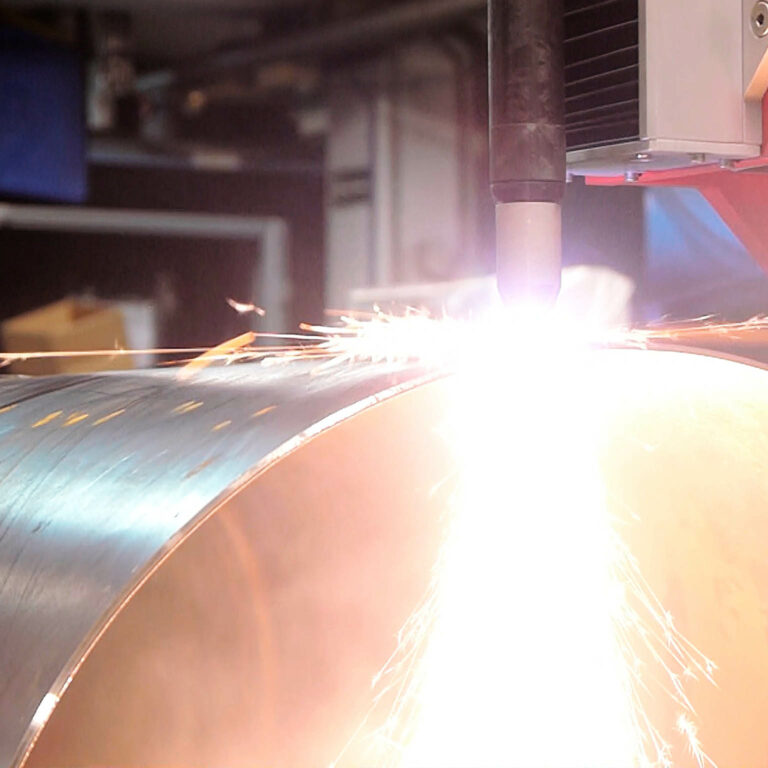

    High definition or air / air plasma cutting machine, for thicknesses up to 20 mm of carbon steel.

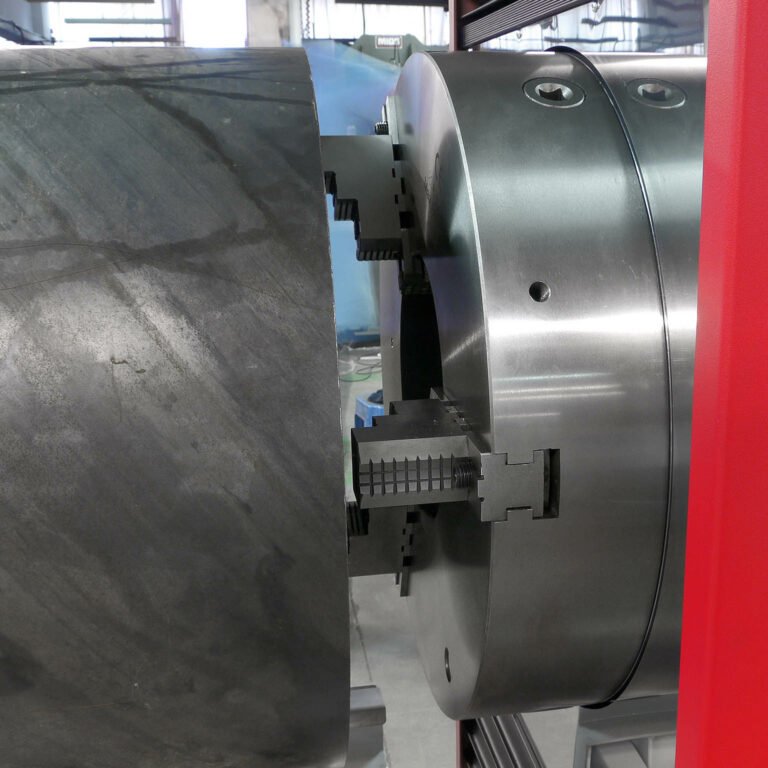

  • Fixed holding
    The fixed clamping of the tube is carried out only at one end, avoiding any other fixed support along the tube.
  • Intuitive interface
    It incorporates a 15” touch screen with an intuitive interface, a library of standard parts and online remote assistance with the support of our Customer Service technicians.
  • Configurable
    The operable length of the machine is adaptable up to 6000 mm.
  • Safety
    It has a security control system using photoelectric barriers to avoid intrusion while operating.
  • Height control and auto-greasing system
    It has a collision detector and an automatic lubrication system that lubricates the specific points of the mechanics.

SPECIFICATIONS

Operable diameters
Ø100 – Ø700 mm
Operable length
Up to 6000 mm
Cutting technology
Plasma (Air-Air or High Definition)
Power Supply
400V III 50/60 Hz
Cutting thickness
Up to 20 mm
Dimensions
7100 x 1100 x 1700 mm
Weight (approx.)
2500 Kg
Materials
Mild steel, Galvanized, Stainless steel and aluminum
Movement Accuracy
0,1 mm/m
Drive System
3 AC servomotors
Control Panel
CNC with 15" touch screen
Control Software
CutExpert by Eurosoft
Download Product data sheet


SPECIFICATIONS

Operable diameters
Ø100 – Ø700 mm
Operable length
Up to 6000 mm
Cutting technology
Plasma (Air-Air or High Definition)
Power Supply
400V III 50/60 Hz
Cutting thickness
Up to 20 mm
Dimensions
7100 x 1100 x 1700 mm
Weight (approx.)
2500 Kg
Materials
Mild steel, Galvanized, Stainless steel and aluminum
Movement Accuracy
0,1 mm/m
Drive System
3 AC servomotors
Control Panel
CNC with 15" touch screen
Control Software
CutExpert by Eurosoft
Download Product data sheet
